Images Dated 20th April 1988

Choose from 10 pictures in our Images Dated 20th April 1988 collection for your Wall Art or Photo Gift. All professionally made for Quick Shipping.

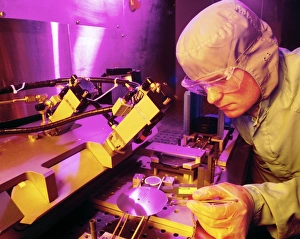

Fabrication of silicon-based integrated circuits Featured 20 Apr 1988 Print

Fabrication of silicon-based integrated circuits

Fabrication of silicon-based integrated circuits (chips), showing a technician monitoring the progress of low-temperature, plasma-enhanced nitride passivation, performed to protect the metal interconnect layer on the chip. Individual chips are constructed on a single wafer of crystalline silicon (visible at bottom centre). The complicated pattern of embedded layers and zones which comprises each integrated circuit was created by successive imaging, etching and deposition or growth processes. This particular wafer consists of chips that will be used to control the motors in computer disk drives

© DAVID PARKER/SEAGATE MICROELECTRONICS LTD/ SCIENCE PHOTO LIBRARY
